Portable Dust Collectors(60HZ)
Model：SF Series
Frequency：60 Hz
Features
- Designed especially for small working environment suitable for coarse dust or chips.
- Powerfui motor features a cast iron blower house with steel impeller, sealed long lasting operation.
- Offer you large collecting capacity.
- Sturdy steel base with four wheel for moving machine to machine, or for storing our of the way.
Specification Table
|
Type |
Powe (HP) |
Wide Volocity (m/sec) |
Air Flow (m3/min) |
Suction Diameter (mm/inch) |
Disagreementa Diameter (mm/inch) |
Filter Bags (cm) |
Collector Bags (cm) |
Combination Size (cm) |
Packing Size (cm) |
N.W. (kg) |
G.W. (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 3/4 | 30 | 15 | 100(4") | 100(4")x1 | Ø30 | 50x100x50 | 47x40x55 | 20 | 22 | ||

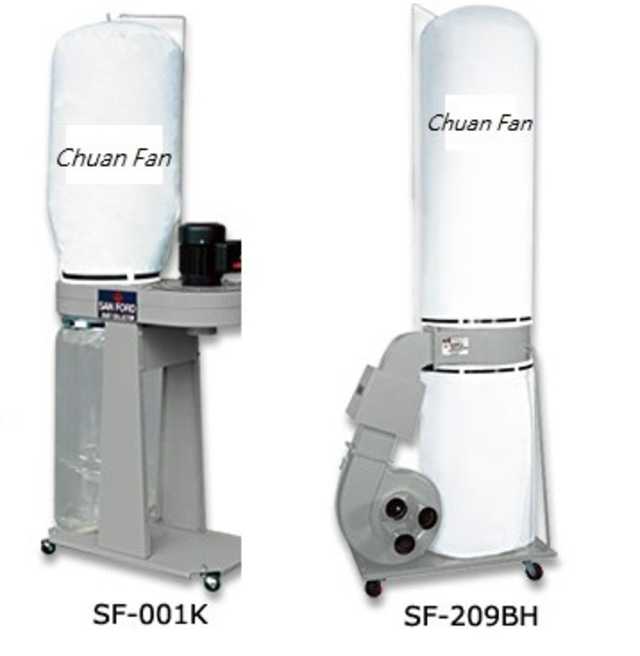

| SF-001K | 1 | 32 | 16 | 100(4") | 100(4")x1 | Ø35 | Ø37 | 75x38x185 | 79x43x39 | 36 | 38 |

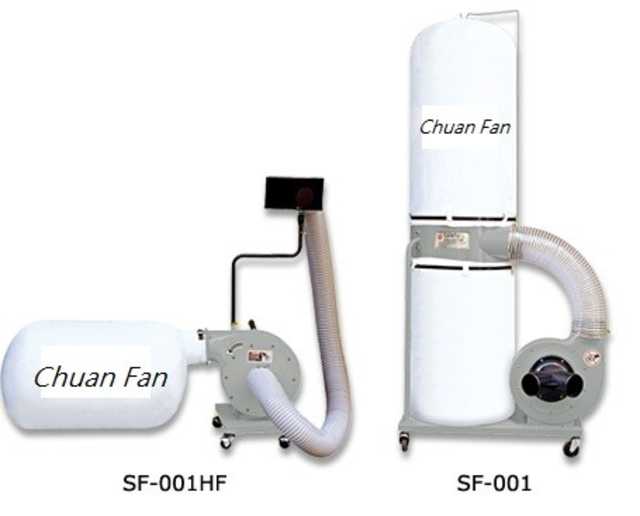

| SF-001 | 1.5 | 30 | 33 | 150(6") | 100(4")x2 | Ø51 | Ø51 | 90x50x200 | 87x60.5x56 | 52 | 53 |
| 2 | 21 | 40 | 200(8") | 100(4")x3 | Ø61 | Ø65 | 97x60x280 | 96x74x59 112x62x80 |
70 10 |
75 12 |
|

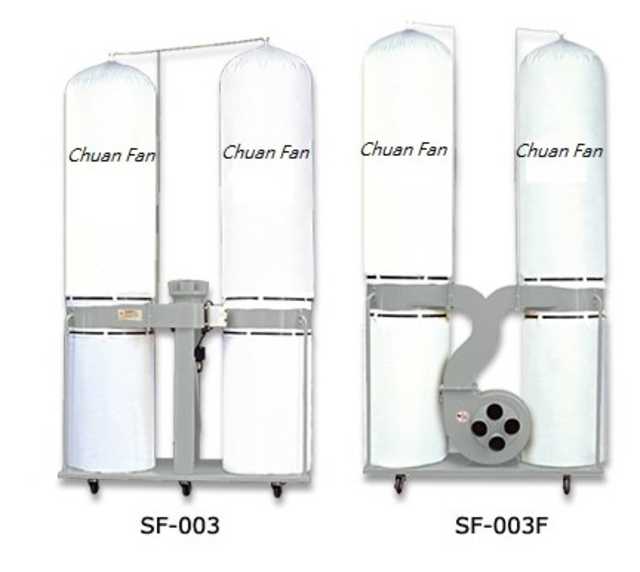

| SF-003F | 3 | 28 | 55 | 200(8") | 100(4")x4 | Ø51 | Ø52 | 144x57x220 | 113x80x58 146x60x8 |
81 13 |
87 15 |
| SF-005 | 5 | 28 | 84 | 250(10") | 125(5")x4 | Ø15x6 | Ø65 | 168x62x280 | 116x70x70 167x64x5 |
100 18 |
115 20 |
| SF-004 | 7.5 | 35 | 107 | 250(10) | 100(4")x6 | Ø61 | Ø65 | 155x130x280 | 162x85x76 | 200 | 250 |
