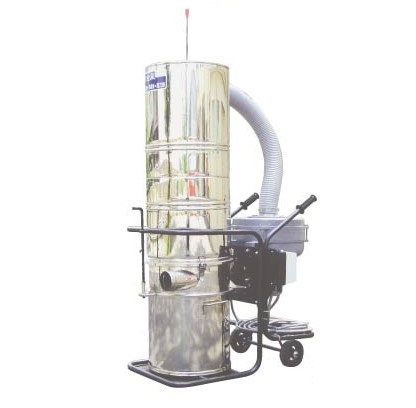

Dust Collecyor
Model：DC Series
Frequency：50/60 Hz
Application
- High efficiency, movable & convenient unit, could be applied nearby dust creators, non pipe-construction required. Economically, Mobility, and Conveniently.
- It's suit to be applied on sand-spray processing, grind processing, wood-working, sawing,...etc. For dust, smog collecting
Features
- DC series, a new design high efficiency dust collector, both cyclone & suction design were adopted.
Specification sheet
| Type | Output KW/HP |
Vacuum kPa靜壓 |
m3/min |
INLET |
Weight |
Collection efficiency More than 99% |
|---|---|---|---|---|---|---|
| DC-RB-750 | 0.75/1 | 13/16 | 2/2.4 | 3" | 80kg | Particle size can be removed 5μm (Special filter bags can reach 1μm) |
| DC-RB-022 | 1.5/2 | 19/23 | 3.4/4.2 | 3" | 90kg | Particle size can be removed 5μm (Special filter bags can reach 1μm) |
| DC-RB-033 | 2.2/3 | 21/26 | 4.8/6 | 3" | 95kg | Particle size can be removed 5μm (Special filter bags can reach 1μm) |
| DC-RB-055 | 3.7/5 | 27/33 | 6.5/8 | 3" | 125kg | Particle size can be removed 5μm (Special filter bags can reach 1μm) |
| DC-RB-077 | 5.5/7 | 27/32 | 10/12 | 3" | 145kg | Particle size can be removed 5μm (Special filter bags can reach 1μm) |
| DC-HTB100-102 | 0.75/1 | 3.2/4 | 10/12 | 4" | 100kg | Particle size can be removed 5μm (Special filter bags can reach 1μm) |
| DC-HTB100-203 | 1.5/2 | 4.6/6.5 | 11/13 | 4" | 106kg | Particle size can be removed 5μm (Special filter bags can reach 1μm) |
| DC-HTB100-304 | 2.2/3 | 6.1/8.5 | 12/14 | 4" | 115kg | Particle size can be removed 5μm (Special filter bags can reach 1μm) |
| DC-HTB100-505 | 3.7/5 | 7.4/10.5 | 13/15 | 4" | 125kg | Particle size can be removed 5μm (Special filter bags can reach 1μm) |
| DC-TB100-1 | 0.75/1 | 1.3/1.8 | 13/15 | 4" | 95kg | Particle size can be removed 10μm |
| DC-TB100-2 | 1.5/2 | 2.1/2.5 | 20/23 | 4" | 100kg | Particle size can be removed 10μm |
| DC-TB125-3 | 2.2/3 | 2.5/3.2 | 25/32 | 6" | 110kg | Particle size can be removed 20μm |
| DC-TB150-5 | 3.7/5 | 3.6/4.5 | 35/45 | 6" | 127kg | Particle size can be removed 20μm |
| DCS-RB-750 | 0.75/1 | 13/16 | 2/2.4 | 1 ½" | 40kg | Particle size can be removed 5μm |
| DCS-RB-022 | 1.5/2 | 19/23 | 3.4/4.2 | 1 ½" | 50kg | Particle size can be removed 5μm |
Dimensions
.jpg)
