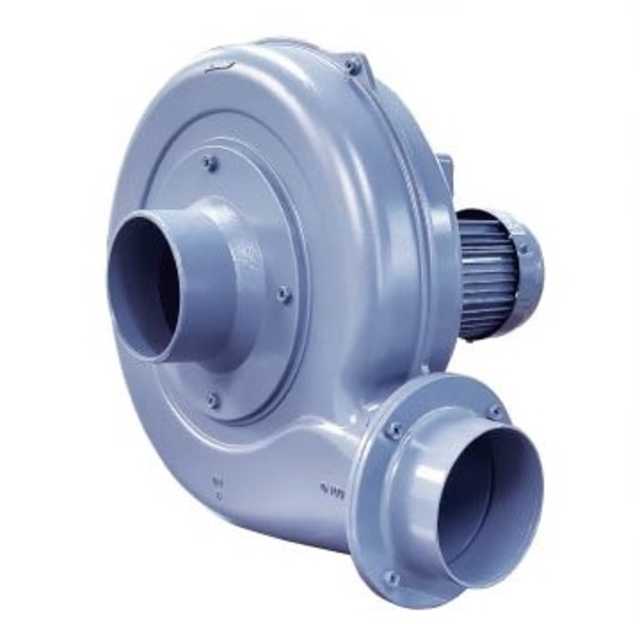

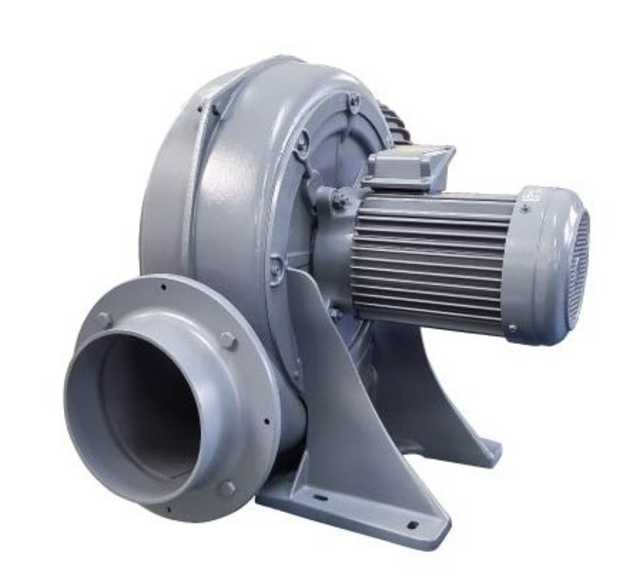

PF Series Radial Fan
Model：PF Type
Frequency：50/60 Hz
Applications
- Printing Machines
- Burning Machines
- Plastic Extruders, Laminating, Film Making Machines
- Uniform Temperature Equipment
- Household Machines
- Dust Collectors
- Textile Machines
- Pollution Machines
- Hot Air Blowers
- Dryers Machines
- Incinerators
- Machinery for the Food and Beverage Industries
- Machinery for Cooling
- Woodworking Machines
- Grain Elevators
Features
- High pressure. Larger flow. Light weight.
- Aluminum alloy material was Widespread be use, offer light products.
- I.E.C. Designed motor (1HP UP), Squirrel Cage Induction Motors & specially designated shaft can satisfy long-time-continue operation.
- Professional impeller designed, high pressure, larger flow, Low noise, and long life.
- Special air-flow-adjust designs offer stable flows and easily control.
- Full range styles and sufficiently finished products of each model make quickly delivery be possible.
Specification sheet
| Type |
Phase |
Output (kW) |
Voltage (V) |
Current (A) |
最大靜壓Presure (kPa) |
最大風量 m3/min |
In/Outlet (mm) |
NoiseLevel (dB) |
Weight (Kg) |
|---|---|---|---|---|---|---|---|---|---|
| PF75-02 | 1~ 3~ |
0.12 | 220 220/380 |
0.8 0.7/0.45 |
0.5/0.7 | 5/6 | 100/75 | 72/75 | 6 |
| PF100-05N | 1~ 3~ |
0.37 | 220 220/380 |
2.5 1.9/1.2 |
0.7/1 | 9.5/11 | 100/100 | 83/88 | 11 |
| PF125-1 | 1~ 3~ |
0.74 | 220 220/380 |
5 3/1.8 |
0.7/1.2 | 14/17 | 125/125 | 85/90 | 17 |
| PF150-2 | 3~ | 1.5 | 220 380 |
5.5 3.5 |
1.3/1.9 | 28/33 | 150/150 | 88/92 | 28 |
| PF150-3 | 3~ | 2.2 | 220 380 |
8 5 |
1.4/2.3 | 30/35 | 150/150 | 89/93 | 34 |
| PF200-5-X (60Hz專用) |
3~ | 3.7 | 220 | 13 | 2.3 | 70 | 200/200 | 99 | 47 |
| PF200-5 (50Hz專用) |
3~ | 3.7 | 220 | 7.5 | 1.8 | 67 | 200/200 | 93 | 47 |
| PF200-7.5 (60Hz專用) |
3~ | 5.5 | 220 | 19 | 2.8 | 78 | 200/200 | 99 | 59 |
Performance chart
Dimensions
