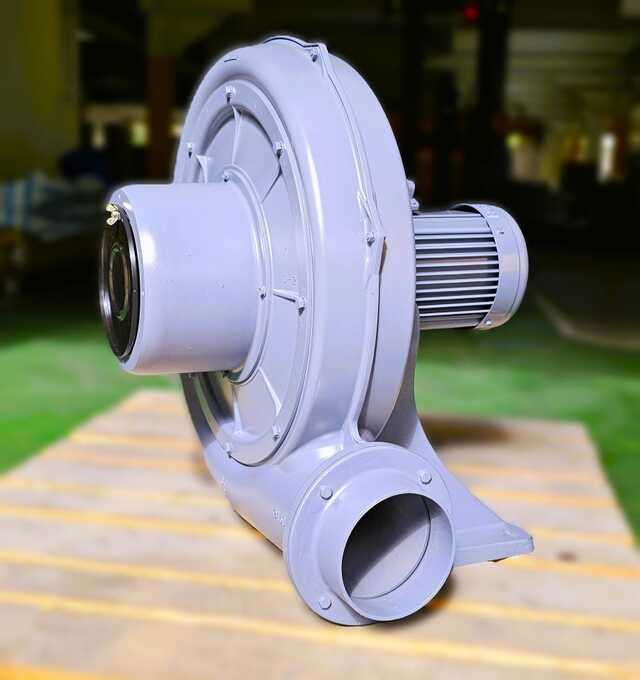

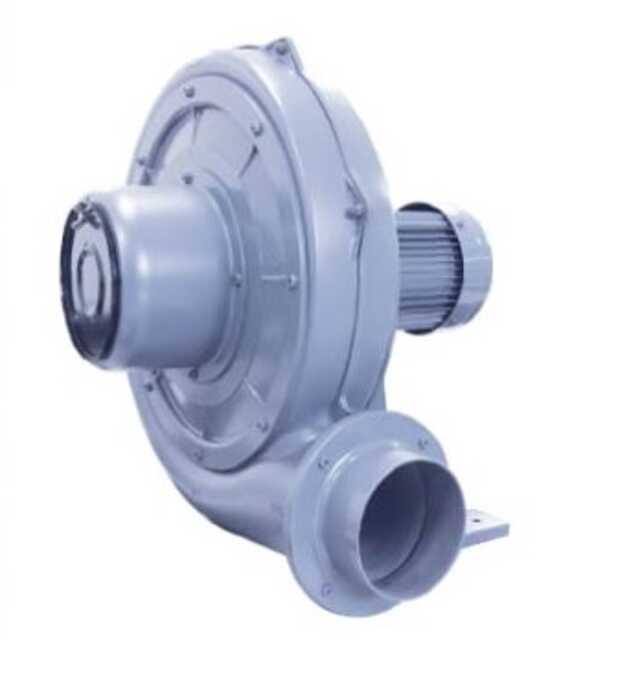

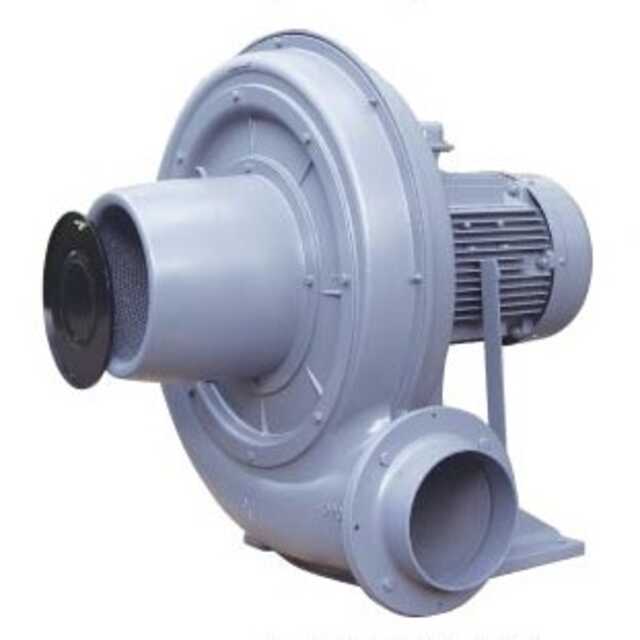

TB Series Turbo Blower
Model：TB Type
Frequency：50/60 Hz
Applications
- Printing Machines
- Burning Machines
- Plastic Extruders, Laminating, Film Making Machines
- Uniform Temperature Equipment
- Household Machines
- Dust Collectors
- Textile Machines
- Pollution Machines
- Hot Air Blowers
- Dryers Machines
- Incinerators
- Machinery for the Food and Beverage Industries
- Machinery for Cooling
- Woodworking Machines
- Grain Elevators
Features
- High pressure. Larger flow. Light weight.
- Aluminum alloy material was Widespread be use, offer light products.
- I.E.C. Designed motor (1HP UP), Squirrel Cage Induction Motors & specially designated shaft can satisfy long-time-continue operation.
- Professional impeller designed, high pressure, larger flow, Low noise, and long life.
- Special air-flow-adjust designs offer stable flows and easily control.
- Full range styles and sufficiently finished products of each model make quickly delivery be possible.
Specification Table
|
Type |
Phase |
Output (kW) |
Voltage (V) |
Current (A) |
最大靜壓Presure (Max.) (kPa) |
最大風量Air Flow (Max.) m3/min |
outlet (mm) |
Noise Level (dB) |
Weight (Kg) |
|---|---|---|---|---|---|---|---|---|---|
| TB100-05 | 1~ 3~ |
0.4 | 220 220/380 |
2.5 1.9/1.3 |
0.8/1.3 | 15/17.5 | 100mm | 75/80 | 12 |
| TB100-1 | 3~ | 0.75 | 220 380 |
3 1.8 |
1.3/2.1 | 18/22 | 100mm | 75/82 | 21 |
| TB100-2 | 3~ | 1.5 | 220 380 |
5.5 3.5 |
2/3 | 20/25 | 100mm | 75/85 | 26 |
| TB125-3 | 3~ | 2.2 | 220 380 |
8 5 |
2.4/3.6 | 33/39 | 125mm | 85/90 | 33 |
| TB150-5 | 3~ | 3.7 | 220 380 |
13 7.5 |
3.8/5.3 | 48/53 | 150mm | 90/95 | 53 |
| TB150-7.5 | 3~ | 5.5 | 220 380 |
19 11.5 |
3.8/5.3 | 50/65 | 150mm | 92/97 | 61 |
| TB150-10 | 3~ | 7.5 | 220 380 |
26 15.5 |
3.8/5.3 | 60/75 | 150mm | 92/98 | 70 |
| TB150L-10 | 3~ | 7.5 | 220 380 |
26 15.5 |
5/6.5 | 40/53 | 150mm | 93/100 | 80 |
| TB200-15 | 3~ | 11 | 220 380 |
36 22 |
5/6.5 | 65/85 | 200mm | 95/110 | 130 |
| TB200-20 | 3~ | 15 | 220 380 |
47 28 |
5/7 | 90/100 | 200mm | 95/110 | 140 |
Performance graph
Dimensions
