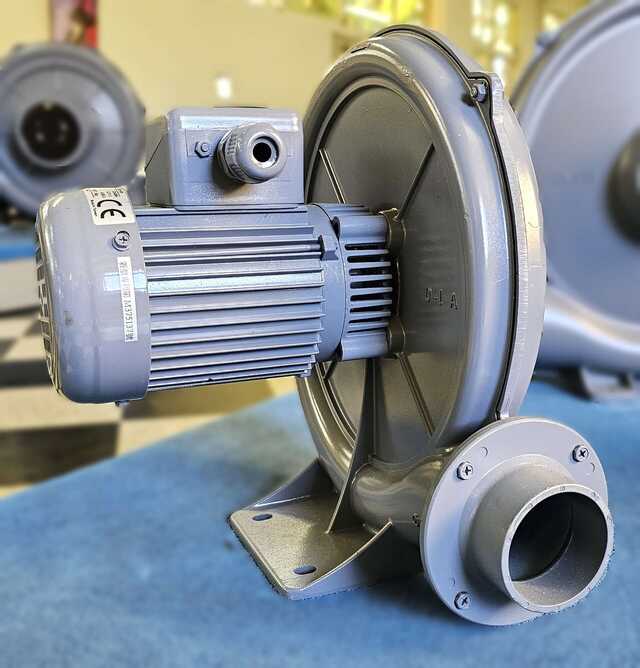

CX-H Heat-Resistant Turbo Blowers
Model：CX-H Series
Frequency：50/60 Hz
Suction Temperature(Max)：250°C
規格表
|
Type |
Phase |
Output (kW) |
Voltage (V) |
Current (A) |
靜壓Presure (kPa) |
風量 m3/min |
In/ Outlet (mm) |
Noise Level (dB) |
Weight (Kg) |
|---|---|---|---|---|---|---|---|---|---|
| CX-65H | 1~ 3~ |
0.19 | 1~220 220/380 |
1.5 1.1/.9 |
0.7/1.1 | 4.5/5.3 | IN 100mm OUT 65mm |
65/70 | 7.5 |
| CX-75SAH | 1~ 3~ |
0.37 | 1Ø 220 220/380 |
2.5 1.9/1.2 |
1.1/1.6 | 7/8 | IN 100mm OUT 75mm |
70/75 | 10.5 |
| CX-75AH | 1~ 3~ |
0.74 | 1Ø 220 220/380 |
5 3/1.9 |
1.7/2.4 | 13/15 | IN 125mm OUT 100mm |
75/80 | 17 |
| CX-100AH | 3~ | 1.5 | 220/380 | 5.5/3.5 | 2/3 | 20/23 | IN 125mm OUT 100mm |
82/90 | 27 |
| CX-125AH | 3~ | 2.2 | 220/380 | 8/5 | 2.4/3.7 | 25/32 | IN 125mm OUT 125mm |
87/95 | 38 |
| CX-150AH | 3~ | 3.7 | 220/380 | 13/7.5 | 3.2/4.4 | 35/45 | IN 150mm OUT 150mm |
92/100 | 54 |
Dimensions
